Dental Surgical Microscope High Brightness LED Illumination 1040V7

5 pieces
MOQ

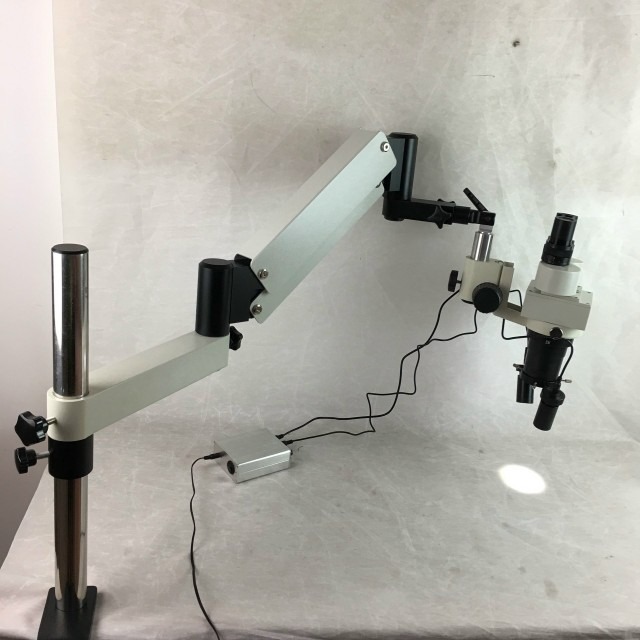

Dental Surgical Microscope High Brightness LED Illumination 1040V7
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: 1040V7
Theory: Stereo Microscope
Drawtube: BINOCULAR
Color: Ral 9002 painting
Eyepieces: WF10x/22mm
Objectives: 1x. 2x. 3x. 4x
Magnification: 3x. 6x. 9x. 12x
Illumination: LED upright projection
Arm: Flexible moving articulated arm
Stand base: U clamp base
Informazioni di base
Model Number: 1040V7
Termini di pagamento e spedizione
Packaging Details: Styrofoam package and exporting carton, one microscope packed in two cartons, microscope body and LED lamp in one carton, microscope stand in another one carton
Supply Ability: 50 Piece/Pieces per Month
Descrizione di prodotto
  • Four powers stereo dental operating microscope, good imaging quality
  • Max brightness 24000 Lux LED upright projection
  • Inclination 45 ° or straight head
  • Easy installation, instant use, providing different mounting solutions, type desktop, mounted on vertical pole of dental chairs or vertical pole from wall or ceiling

Main specifications

Eyepieces CWF10x/20mm
objectives 1x, 2x, 3x, 4x, optional 5x and 6x
Working distance250mm or 300mm, total magnification: 3x, 6x, 9x, 12x
Interpupillary distance adjustement range55-75mm
Viewing head

inclination of 45° or straight head, binocular or trinocular type

Diopter adjustment±5 diopter.
IlluminationLED upright projection, Max brightness 24000 Lux, scope of beam lighting can be controlled
InstallationBasic desktop mounting, flexible moving articulated arm (horizontal extension 750mm) mounted on verticall pole(diameter 38mm, height 420mm) and U clamp base
Optional eyepieces WF15x, WF20x, WF25x
Optional accessories CCD or CMOS camera, 7" LCD screen

Technical data

Auxiliary objective lensEyepiecesTotal magnificationWorking distance
0.3xWF10x3x, 6x, 9x, 12x250mm/300mm
0.3xWF15x4.5x, 9x, 13.5x, 18x250mm/300mm
0.3xWF20x6x, 12x, 18x, 24x250mm/300mm
0.3xWF25x7.5x, 15x, 22.5x, 30x250mm/300mm

Packing details:

1. Carton sizes of stand: 64x40x15cm, GW 10kg , one unit in a carton

2. Carton sizes of microscope body : 31x36x21cm, GW 4kg, one unit in a carton
