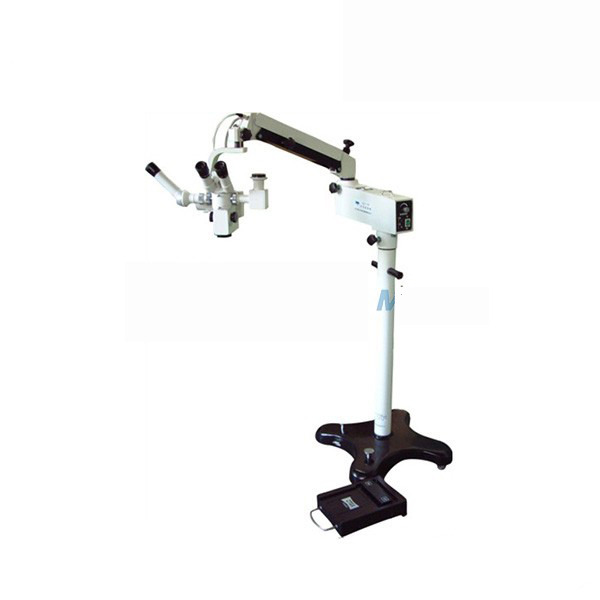

Binocular Microscope Multifunctional Surgical Ophthalmic Operating Microscope For Neurosurgery YSLZJ4D

Binocular Multi-function Surgical Neurosurgery Microscope Operating Microscope

Model: YSLZJ4D

Binocular Multi-function Surgical Neurosurgery Microscope Ophthalmic Operating Microscope

Application

This is a light multi-function operation microscope developed which can be used in the operations such as brain surgery, ENT, ophthalmology etc.

The optical routeway of the microscope adopts the parallel optical routeway and it has the features of big field depth, wide vision field and uniform illumination.

Single ocular teaching scope, camera interface and CCD interface are available for choice.

The instrument is also ideal for animal dissection and microsurgery teaching.

Specification

1). Binocular tube focus: 160mm

2). Eyepiece: 12.5x, wide-angle,adjustable visual degree and caging device.

3). Big objective lens: F: 200, 250, 300, 400mm (Optional: apochromatic objective lens)

4). Motorized focusing by foot control, the fine focusing range:40mm

5). The diameter of visual field: 80mm ~ 12.5mm

6). The range of ocular distance:50 ~ 75mm

7). The main microscope has six movements of degrees of freedom

Easily adjustment by hand. Tilting range in swing: ±30°,Tilting range in pitching: -5°~90°

8). Five steps magnification change,Ratio of magnification:1:6, magnification:4x,6x,10x,16x,24x

9). Cold light source: 12V, 100W, The maximum brightness: 80000Lux

10). Pneumatic spring balance stand. Arm stretch radius: 1200mm

freely rotation > 180°, Movement range of up-down ≥ 500mm

11). Voltage and frequency of power supply: 220V±10%, 50Hz±1Hz or 110V±10%, 60Hz±1Hz

Optional Accessories:

Splitter, monocular Teach mirror, digital camera interface, 1/3 inch CCD camera interface,

the optional xenon lamp lighting, 0°eyepiece.
